Nobels REV-mini Compact Stereo Reverb effect pedal
Nobels REV-mini
Tiny Box, Massive Sound!
First shipment expected around mid-October to early November
Get ready to explore the infinite expanses of space with the REV-mini. This compact powerhouse puts the perfect tool right at your fingertips—or rather, under your foot! Designed specifically to deliver a wide range of legendary reverb simulations, this tiny pedal delivers every nuance in full stereo width. From the classic spiral reverb of the Surfer classics, to the ethereal soundscapes of the ’70s, all the way to high-resolution studio sounds, the REV-mini offers a magical journey through space and time.
Let your creativity run wild and expand your sound by holding down the On/Off button. Freeze and Shimmer give you that Xtra moment.

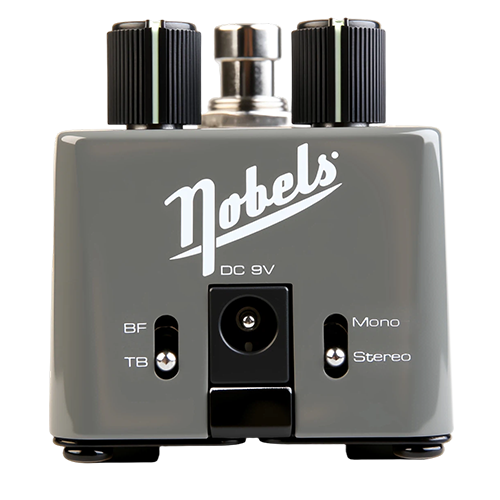

Your sound, tailored to your taste: Switch between true by-pass and buffered bypass with a convenient toggle switch for ultimate flexibility.
Big possibilities, small price: Classic reverb simulations meet affordable prices.
The REV-mini isn’t just a pedal—it’s your ticket to a powerful sonic adventure!
FEATURES
- 3 Reverb Modes: Spring, Plate, Hall
- Xtra function: Freeze or Shimmer
- Selectable Mono or Stereo (TRS) inputs and outputs
- Selectable True- or Buffered Bypass
- “Glow in the Dark” knob indicators
- Mounty-P mounting plates
- Small, compact metal enclosure
- Light weight
SPECS
- Power: stabilized and filtered power supply 9 Volts DC (not included)
- DC plug: 2.1 mm / negative center
- Consumption: less than 100mA
- Input impedance: 1M ohm
- Output impedance: 10K Ohm
- Max. input Level: typical 6.6 dBu (1 kHz - 1% THD+N)
- Dynamic range: typical 106 dB (w/o effect through DSP Buffer)
- DSP Processing: 48 kHz / 32 bit - A/D D/A Sampling Rate 48 kHz / 24 bit
- Controls: Size, Blend, Tone
- Switches: Mode, Bypass, Mono-Stereo, On/Off (Xtra)
- Jacks: DC, Input TRS 1/4“ (6.3 mm), Output TRS 1/4“ (6.3 mm)
- Indicator (LED): 1x Multicolor LED: (On/Off, Mode )
- Spring: green LED
- Plate: red LED
- Hall: blue LED
- Mounty-P: 4x fold-out mounting plates
- Dimensions (cm): LxWxH 9.37 x 4.85 x 5.13; 12 x 6.95 x 6.5 (boxed)
- Weight (gr): 210 / 301 (boxed)
- (Specifications are subject to change without notice)
