Nobels ODR-mini2 Natural Overdrive

(0)No Reviews yet
$79.00
SKU: Nobels ODR-mini2
WEIGHT: 0.7 lb

This item is OUT OF STOCK

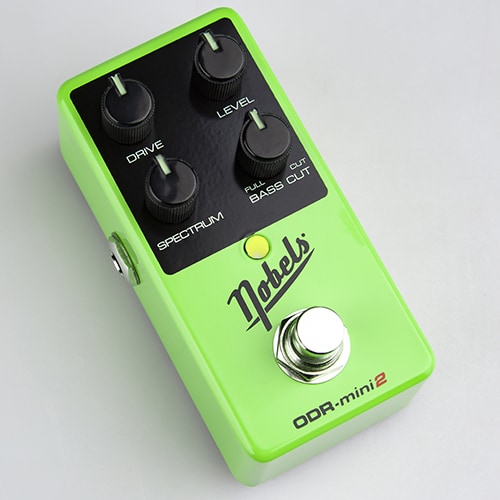

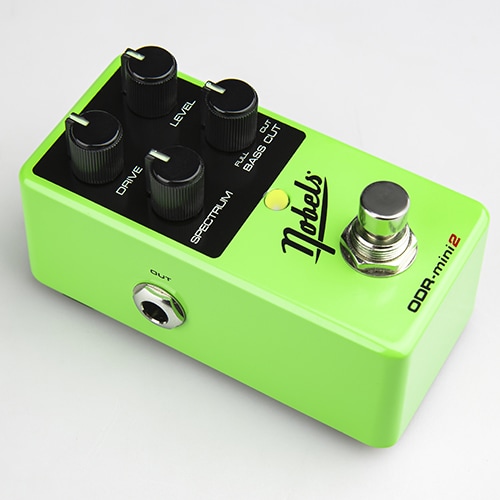

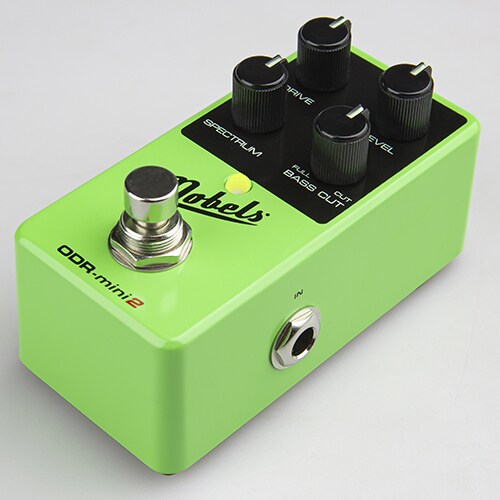

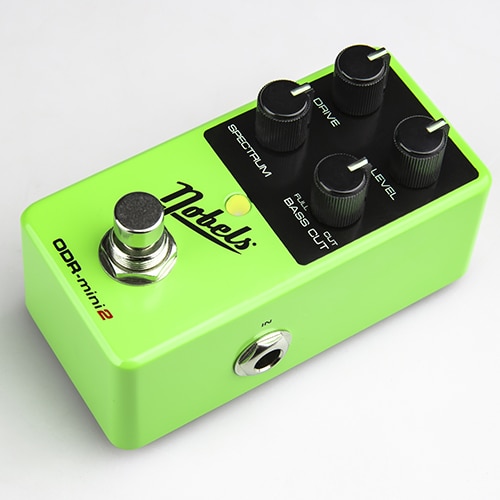

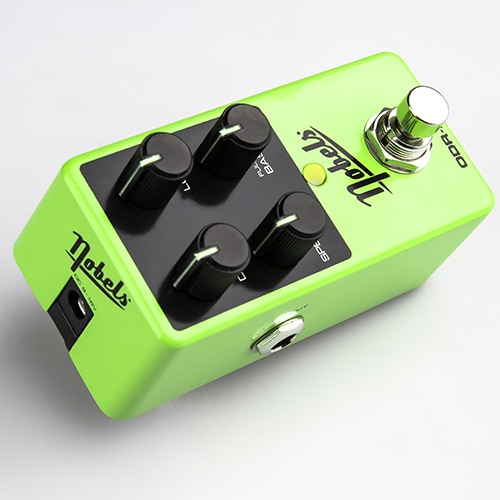

Nobels ODR-mini2

The new Nobels ODR-mini 2 is the next stage in the evolution of the legendary ODR-1’s little brother, the ODR-mini. Due to popular demand, this diminutive powerhouse now features a very useful bass cut feature as an external control. Added to this, the upgraded full metal housing, along with the integrated Mounty-P Mounting Plates, completes the worthwhile upgrades for this compact dynamo.

Variable Bass Cut

For extended ease of use, the internal Bass Cut feature originally included in the ODR-1BC is now available as an external variable control right on the face of the pe- dal. This allows for complete optimisation of the pedal’s bass response on the fly, at the simple turn of a knob. The flexibility of this new additional control compliments Nobels’ unique and renowned SPECTRUM tone control, which alters the proportion of both the low-mid and high frequencies simultaneously. At midday, the frequencies remain almost untouched. However, moving from the minimum to maximum positions will deliver variations in frequency response that are suitable for a wealth of musical tastes and styles.

More Headroom

The pedal can be operated with up to 18V DC voltage. Different operating voltages have the consequence of influencing the dynamic behavior. At low voltages, an overdrive goes into saturation earlier, while at high operating voltages the signal remains more transparent.

Features

  • New Variable Bass Cut knob to adjust the low end
  • New Includes 4x integrated Mounty-P mounting plates
  • New Upgraded metal enclosure
  • Natural Analog Overdrive effect pedal
  • True Bypass
  • Glow in the Dark pointer knobs
  • Glow-In-The-Dark Pointer Knobs
  • Powered by 9V battery or optional 9-18V power supply (not included)

Specs

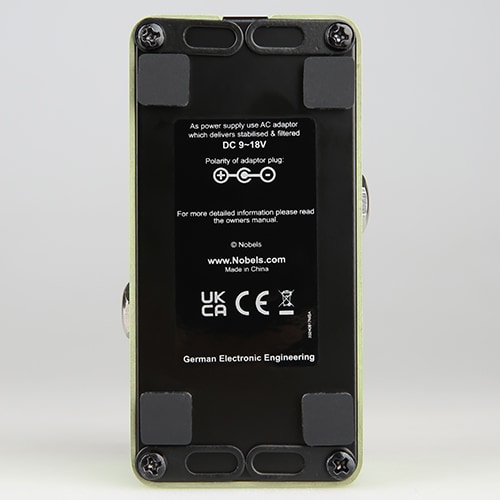

  • Power (DC): 9V battery (optional) or 9V~18V power supply
  • Power connector: 2.1 mm, center negative
  • Consumption: max. 12 mA
  • Input impedance: approx. 1 MΩ
  • Output impedance: approx. 2.2 kΩ
  • Max. input level: +6 dB
  • Controls: Drive, Spectrum, Level, Bass Cut
  • Gain Boost: up to 29.5 dB
  • Switches: ON/Off, Gain Boost, True/Buffered Bypass
  • Jacks: DC, TS 1/4" Input & Output
  • LED Indicators: 1x green (On/Off)
  • Mounty-P: 4x integrated fold-out mounting plates
