Nobels DEL-mini-delay-pedal
Nobels DEL-mini
The new Nobels DEL-mini digital delay pedal combines an outstanding sound selection of legendary echoes, practical and simple switching and application options in a space-saving housing. Plus that little Nobels extra in the form of fold-out Mounty-P mounting plates or “Glow in the Dark” pointer knobs. Everything at an extremely attractive price! We hope you enjoy using this pedal!
Small, practical, and big sound was the goal when when developing the DEL-mini. The 3 Echo types offer a wide spectrum of sound variations in mono or wide stereo. The dry signal always remains in the center. The tap tempo function opens up extreme possibilities for shaping the sound, especially in tape or analog operation. The tempo is displayed visually via the LED. The tape echo and classic analog analog echo offer the warm sounds like the good old days. The digital mode is clear and high quality. Depending on the situation, you can select true or buffered bypass mode. The DEL-mini combines a selection of the best echoes in one pedal at a musician-friendly price.
The DEL-mini comes equipped with Mounty-P mounting brackets. Mounty-Ps are an excellent choice for securely mounting your pedals. They keep your valuable pedals in place during transportation and shows.
German Engineering. Made in China.
FEATURES
- Tape, Analog, and Digital modes
- Tap Tempo
- Mono or Stereo operation
- True Bypass or Buffered Bypass modes
- “Glow in the Dark” knob indicators
- Mounty-P mounting plates
- Small compact size
- Light weight
SPECS
- Power: stabilized and filtered power supply 9 Volts DC (not included)
- DC plug: 2.1 mm / negative center
- Consumption: max. 58 mA
- Input impedance: 1M ohm
- Output impedance: 10K Ohm
- Dynamic range: 103 dB
- DSP Processing: 48 kHz / 32 bit - A/D D/A Sampling Rate 48 kHz / 24 bit

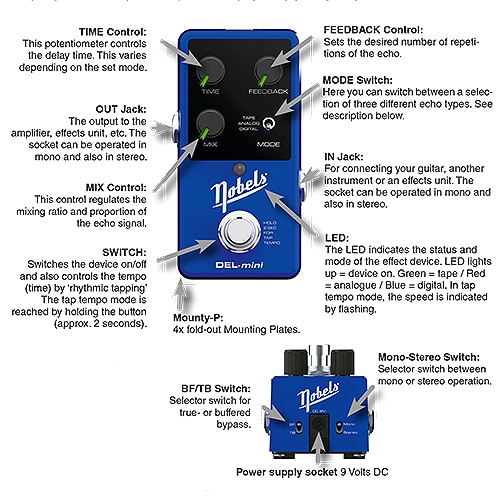

- Controls: Time, Feedback, Mix
- Switches: Mode, Bypass, Mono-Stereo Signal, On/Off (Tap Tempo)
- Jacks: DC, Input TRS 1/4“ (6.3 mm), Output TRS 1/4“ (6.3 mm)
- Indicator (LED): 1x Multicolor LED: (On/Off, Mode and Tap Tempo)
- Tape Delay Time: up to 553 ms
- Analog Delay Time: up to 402 ms
- Digital Delay Time: up to 1000 ms
- Mounty-P: 4x fold-out mounting plates
- Dimensions (cm): LxWxH 9.37 x 4.85 x 5.13; 12 x 6.95 x 6.5 (boxed)
- Weight (gr): 210 / 301 (boxed)
- (Specifications are subject to change without notice)
