JOYO 10 Band Controller (EQ) R-12
JOYO R-12 10 BAND CONTROLLER (EQ)
The JOYO 10 Band Graphic EQ Effect Pedal Is Suitable For Both Bass And Guitar, Giving You Shaping Control Over Frequency Bands Ranging From 31.25Hz To 16 KHz. A 10 Band Slide Control Dials In Deep Lows, Fantastic Bright Mids And Crystal Clear High-End Frequencies. The Illuminated Sliders Let You Easily See What Your Eq Is Doing, The R Series Ambient Lights Make This Pedal Stand Out. A Powder-Coated Sky Blue Aluminium Housing Will Mean This EQ Will Endure Prolonged Use Overtime On The Pedalboard.
Achieve A + Or -12 DB Boost Or Cut Per Frequency Band
On The Right Side, There Is Additional Independent Volume Control, + Or -12 DB Boost Making It A Perfect Boost For Making A Solo Stand Out, Or Pushing A Tube Amp Into Overdrive Mode.
FEATURES
- Illuminated Sliders
- Dimensions: 125*78.5*48mm
- Weight: 316g
- Input Impedance: 1MΩ

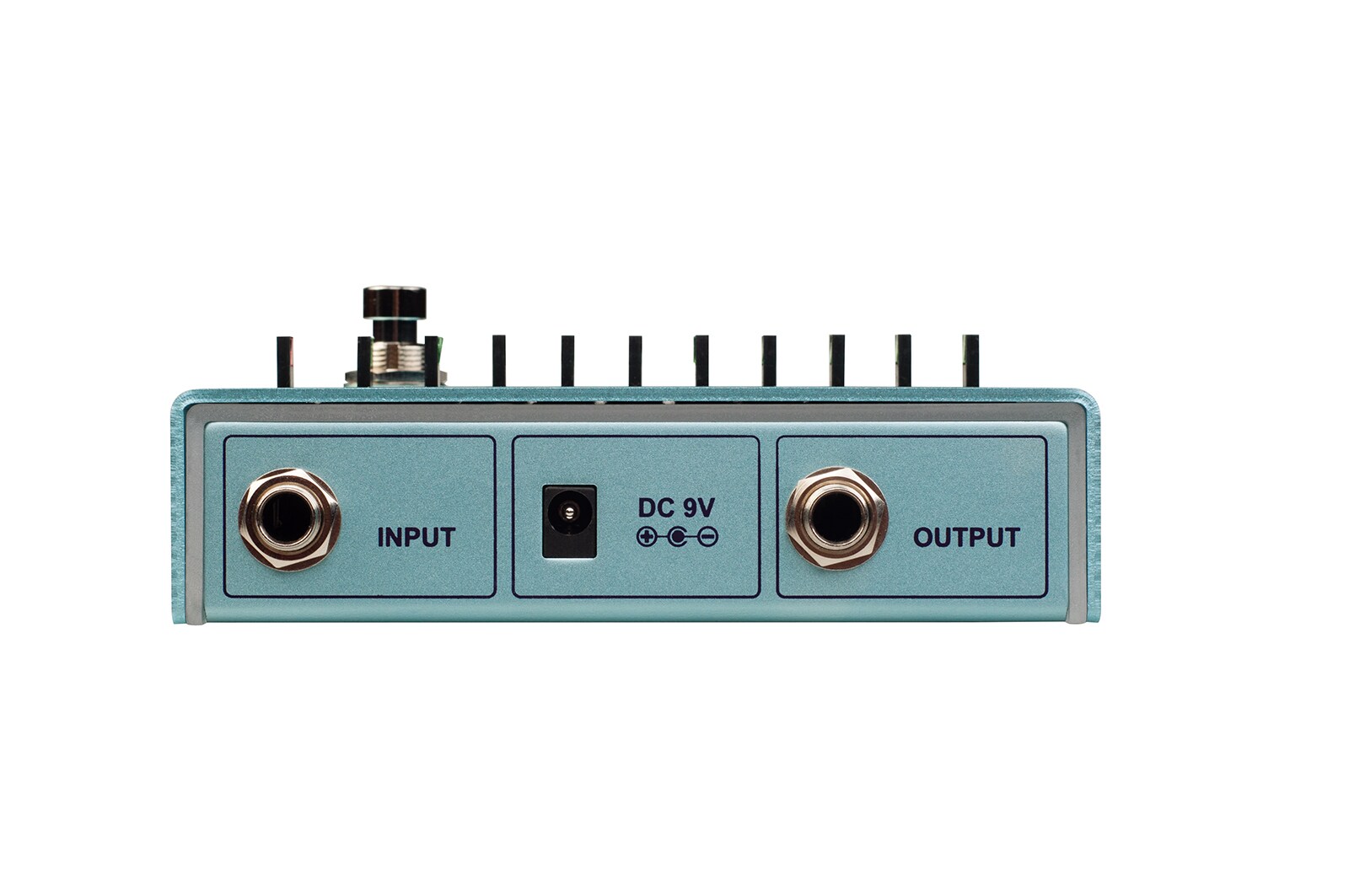

- Input Mono 6.3mm
- Output Impedance: 100Ω
- Output Mono 6.3mm
- Rated Current Consumption: 30mA
- Working Voltage: DC 9V (Centre Negative)
- Signal Bypass Type: True Bypass
SPECS: EQ Frequencies
- 31.25 Hz
- 62.5 Hz
- 125 Hz
- 250 Hz
- 500 Hz
- 1K Hz
- 2K Hz
- 4K Hz
- 8K Hz
- 16K Hz
