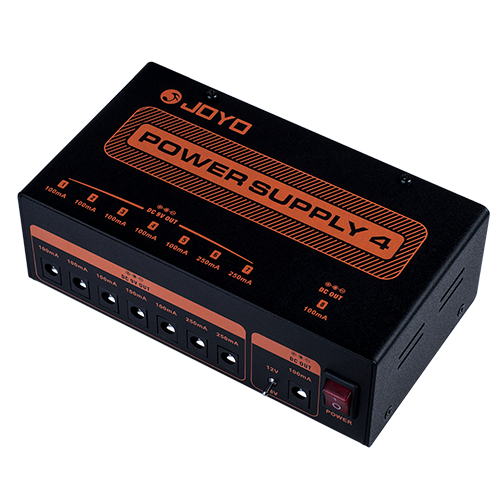

JOYO JP-04 Isolated Power Supply
JOYO JP-04 Isolated Power Supply

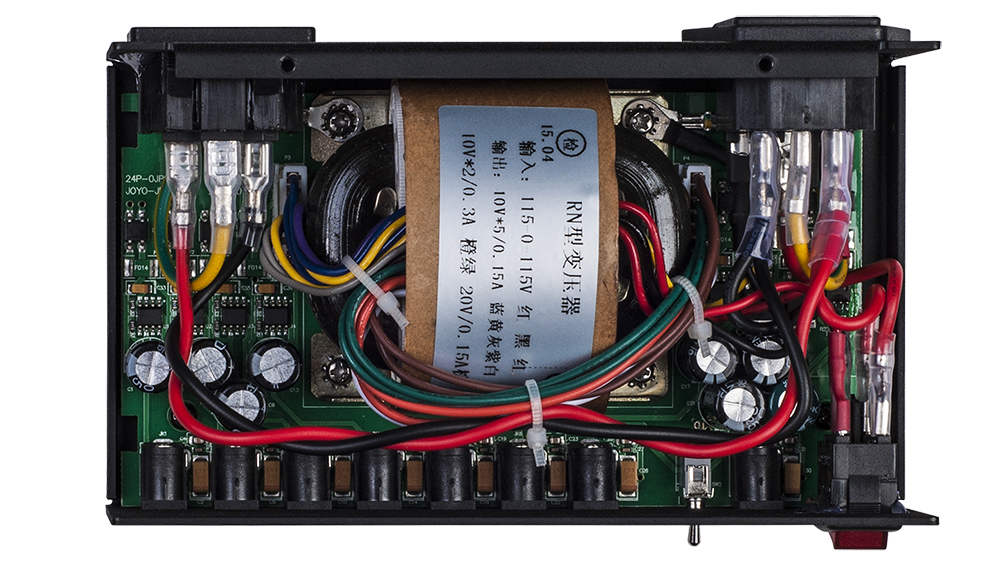

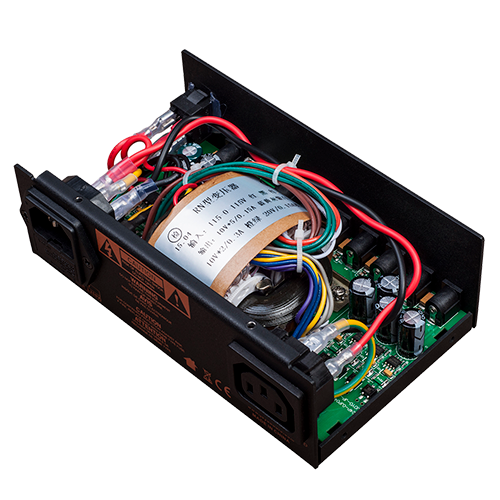

The JOYO JP-04 is an isolated power supply for guitar effect pedals. It uses a high quality R transformer. It has eight 9V outputs with independent power cable and ground wire, each output is completely isolated, short-circuit and overcurrent protected, and highly filtered and regulated. This ensures reliable operation, free from hum and noise. It provides a clean and transparent sound.
Features
- 8 isolated outputs
- Power output: 9V, 12V, or 18V

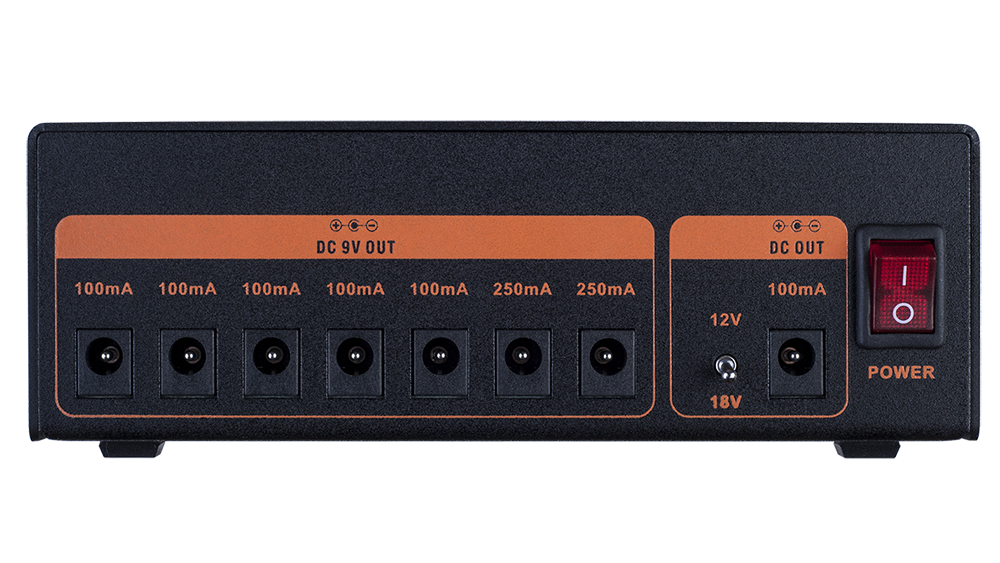

- 5x 9V 100mA, 2x 9V 250mA, 1x 12/18V 100mA (switch)
- Isolated short-circuit/overcurrent protection

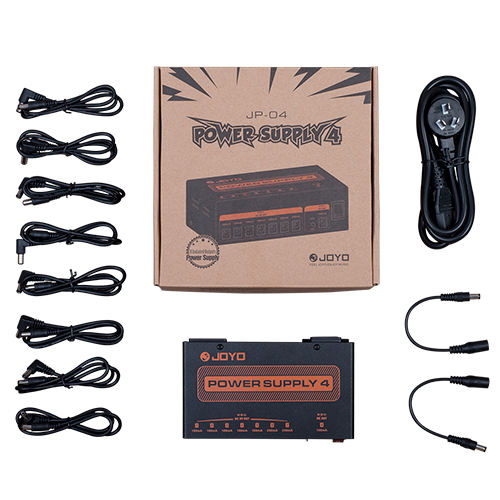

- Includes cable

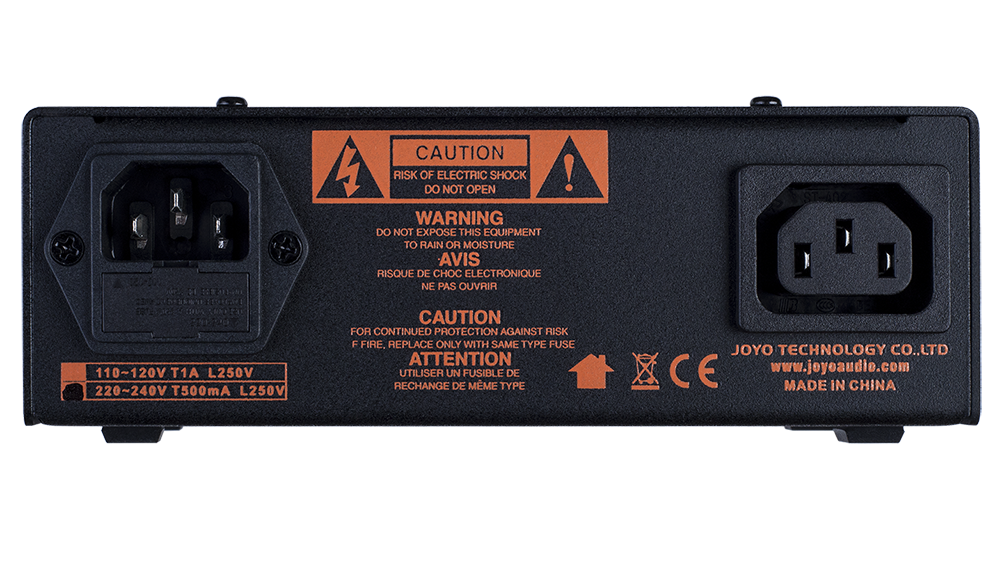

- AC output port
Product Specs
Power: US AC power cable, power consumption 30W
Access: 8x DC power cables, 2x polarity reversal cable
Dimensions: 160mm x 100mm x 60mm (D x W x H)
