АМТ U-2 Pangaea Ultima Brain Frame
AMT U-2 Pangaea Ultima

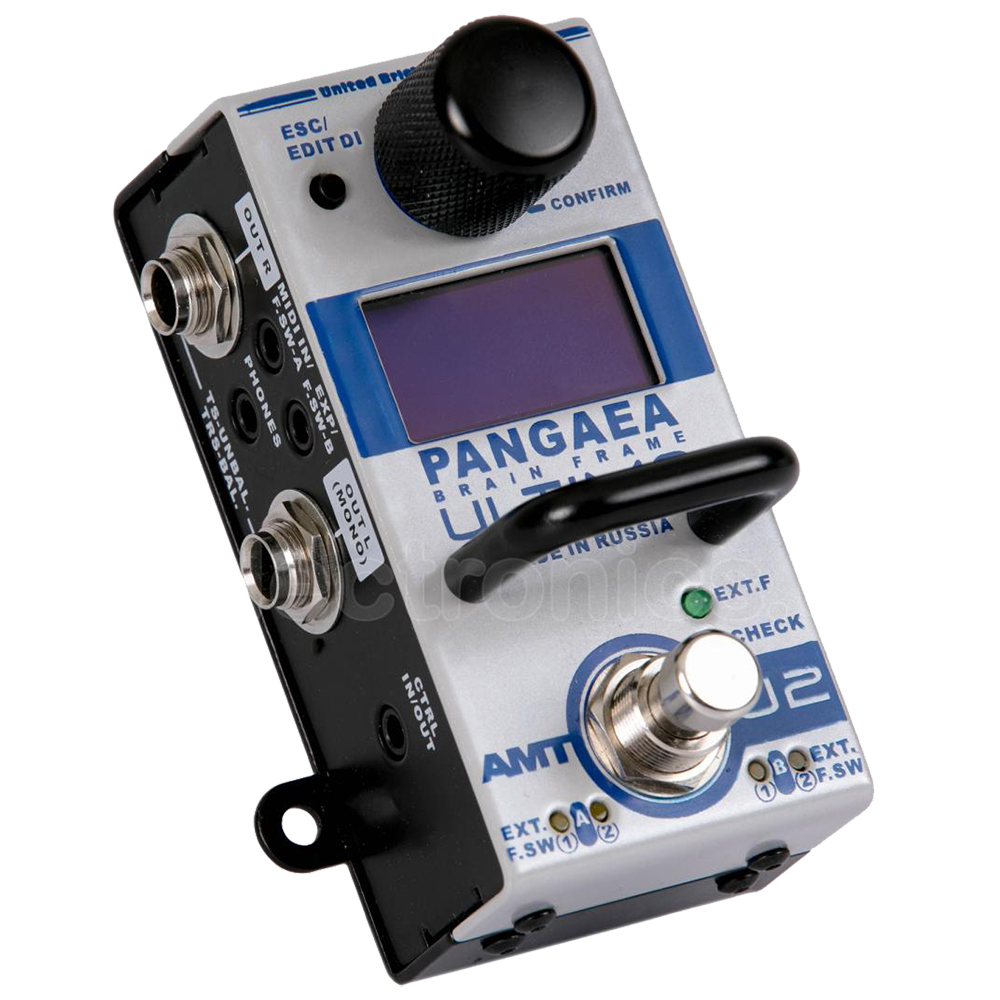

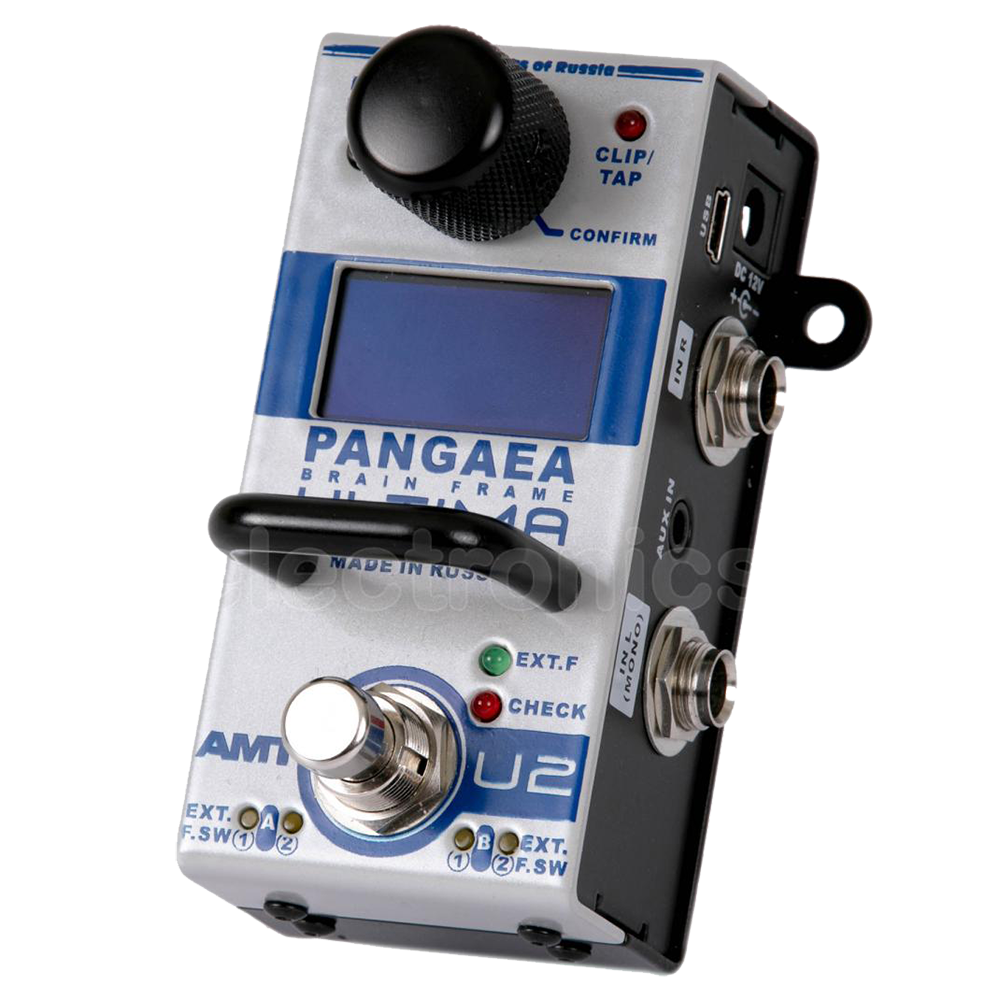

AMT Electronics presents the new device AMT U-2 Pangaea Ultima Brain Frame.
The AMT U-2 Pangaea Ultima is a hardware platform on which various guitar effects can be implemented by the pedal's software. Changing the functionality of the device is carried out by changing the parameters of the device.
There are 6 parameters that the user can modify: IR/CabSim FX, Modulation FX, IR Stereo CabSim, Stereo Delay, Stereo Reverb, Pre/Post FX
01: IR CabSim Fx
The main firmware that comes with the device by default. A feature is an analog-digital preamp section with three channels: clean, low, high gain.
- Noise Gate (global setting)
- Compressor
- Analog Preamp (Clean / Low gain / High gain)
- Power Amp (9 types)
- IR cabsim (1 IR for both L/R channels per preset)
- Parametric Pre/Post EQ
- Hi/Low pass filters + Presence
- Delay or Reverb effect per preset
02: Modulation FX
- Noise Gate (global setting)
- Compressor
- Chorus
- Delay
- Flanger
- Chorus
- Delay
- Tremolo
03: IR Stereo CabSim
The firmware that turns the device into a powerful stereo IR impulse responses cabinet emulator.
- IR Stereo cabsim (2 IRs per preset: the first wav IR for the LEFT channel, another one wav IR for the RIGHT channel)
- Parametric Pre/Post EQ
- Hi/Low pass filters + Presence
04: Stereo Delay
Multifunctional STEREO IN/OUT Delay effect.
05: Stereo Reverb
Multifunctional STEREO IN/OUT Reverb with the following types:
- Gold Reverb
- Hall
- Room
- Plate
- Spring
- Gate
- Reverse
06: Pre/Post FX
The firmware that turns the Ultima U-2 device to the PRE / POST effect processor.
PRE section:
- Noise Gate
- Compressor
- Phaser
- Flanger
POST section:
- IR cabsim (1 IR for both L/R channels per preset)
- Parametric Pre/Post EQ
- Hi/Low pass filters + Presence
- Delay or Reverb effect per preset
SPECS
IN L, IN R
Inputs of the Left and Right channels:- input impedance 470 k_
- rated input voltage of audio signal 0.316Vrms (-10dBV)
- maximum sinusoidal voltage 2.5V (+8dBV)
AUX IN
- Input impedance 2kOhm
- maximum sinusoidal voltage 0.85V (-1.4dBV)
OUT L, OUT R
Outputs of the Left and Right channels:- output impedance 1,5kOhm (unbalanced output)
- maximum sinusoidal voltage 2,6V (unbalanced output)
- phantom power protection Ð present
PHONES
Output to headphones:- minimum headphone impedance 32 Ohm
- maximum output sinusoidal voltage (no load) 2,6V (8dBV)
- output impedance 12 Ohm
POWER
- Voltage DC 12V
- Current consumption Approx. 300mA
- Power supply NOT included
CHARACTERISTICS OF IR FILES
- Type: WAV, IR A/D D/A converters 24 bit
- Latency: 48 kHz
- IR length: 1024 samples (21.3 msec)
- S/N: 115dB
- Latency: 1.2 ms / 0.0012 s
- Codec: AD\DA AK4621
